Interface

At the top centre of the window is the Simple / Advanced switch. Simple mode leaves one toggle button, the Telegram and WARP cards, and the target selector. Advanced adds tabs: Home, Strategies, Host lists, Diagnostics, Journal, Telegram, WARP, Settings.

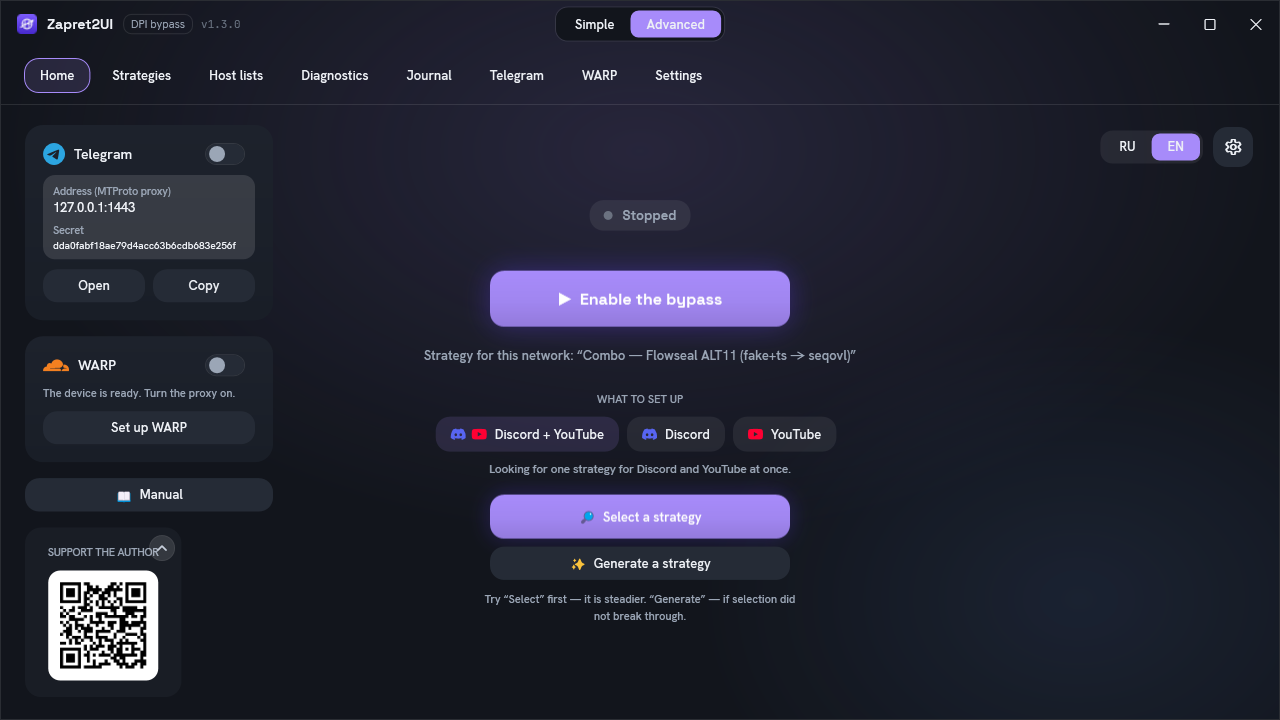

Home

• The bypass toggle. Starts and stops the engine. Above it are a dot and a status caption: Stopped, then Starting, then Running.
• Bypass target. Discord + YouTube, Discord or YouTube: what exactly the program tries to open during selection and generation. The narrower the target, the more precise the result.
• Select a strategy. Works through the proven ready-made strategies and keeps the one that opens your chosen targets. Start here: it follows a fixed list and is therefore more predictable.
• Generate a strategy. Builds a variant from scratch, separately for Discord and for YouTube. Slower; needed when selection did not punch through.
• The Telegram card. The address and secret of the built-in proxy, the "Open" and "Copy" buttons, plus the on switch.
• Strategy for this network. This line appears when a working variant is already remembered for the current network.

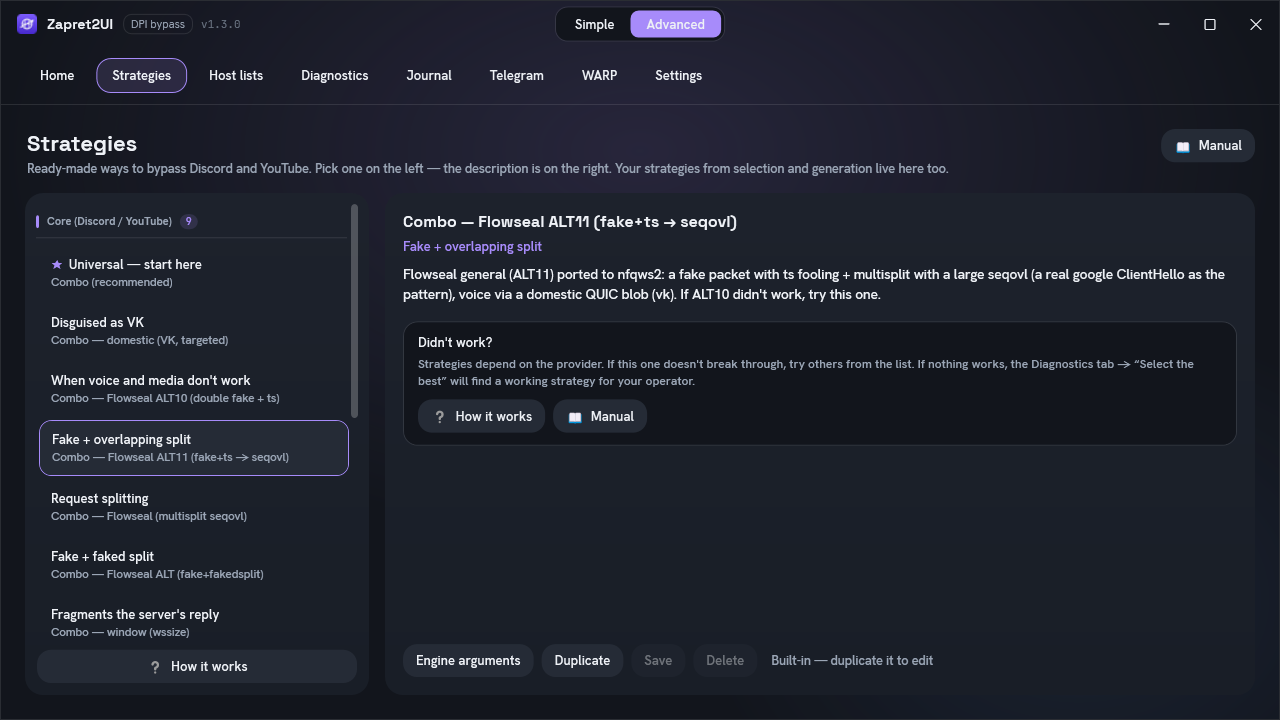

Strategies

Select a row and press "Apply": the bypass restarts on the chosen strategy. Hover over a row to see the full name and description in a tooltip.

This is also where your own strategies land, the ones saved after selection or generation. Built-in ones cannot be edited, but any of them can be duplicated and the copy edited. What each built-in strategy does is broken down line by line on the Strategies explained page.

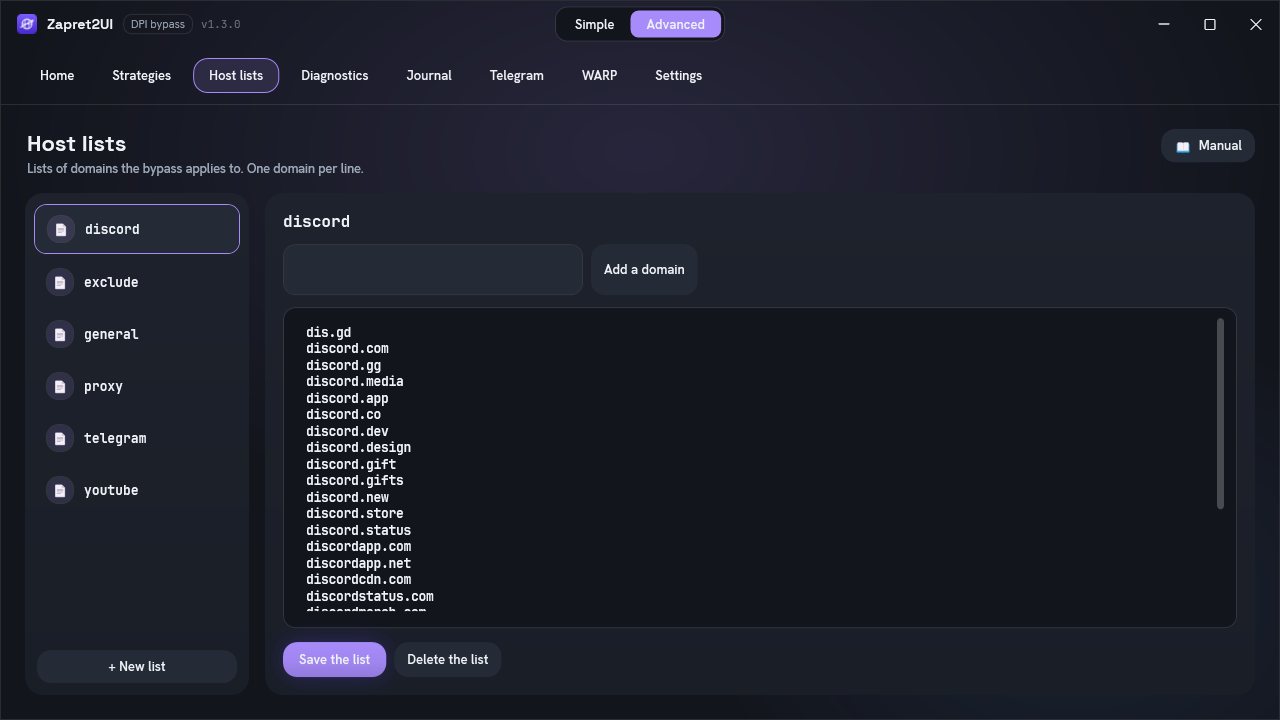

Host lists

Host lists decide which domains the bypass applies to. This is central to the "lists only" mode, which is on by default: whatever is not on a list, the engine does not touch.

The file format

A plain text file, one domain per line, with no protocol, no slashes and no asterisks. That is exactly how the engine reads it; the program invents no format of its own.

discord.com
discord.gg
discordapp.com
discordapp.net
gateway.discord.gg

A domain covers its subdomains too: the line discord.com also matches canary.discord.com. So listing subdomains separately is rarely necessary.

Which lists exist

How a list reaches a strategy

Lists are not written into a strategy as paths. Tokens are used instead, and they are expanded at launch.

The complete list of tokens: Reference.

My targets

A quick way to add a domain without dealing with lists. The button lives on the Diagnostics tab. A domain you add:

• goes into a separate combined list of targets;
• starts being checked in diagnostics alongside Discord and YouTube;
• takes part in selection and generation, so a strategy is sought for it as well;
• is bypassed even in "lists only" mode.

When you add one, the program accounts for subdomains and the same brand in other zones by itself: yandex.ru, for example, pulls in ya.ru and yandex.kz too.

Bypassing by IP address

Domain lists work as long as the blocking is by name. If a service is cut off by address, changing the name in the packet is pointless. For that case there is ipset: a list of subnets instead of a list of domains.

The "Build Discord IP list" button resolves the Discord domains and puts the current subnets into lists\ipset-discord.txt. No administrator rights are needed; only DNS is involved. In a strategy the list is attached with the {IPSET} or {IPSET:name} token.

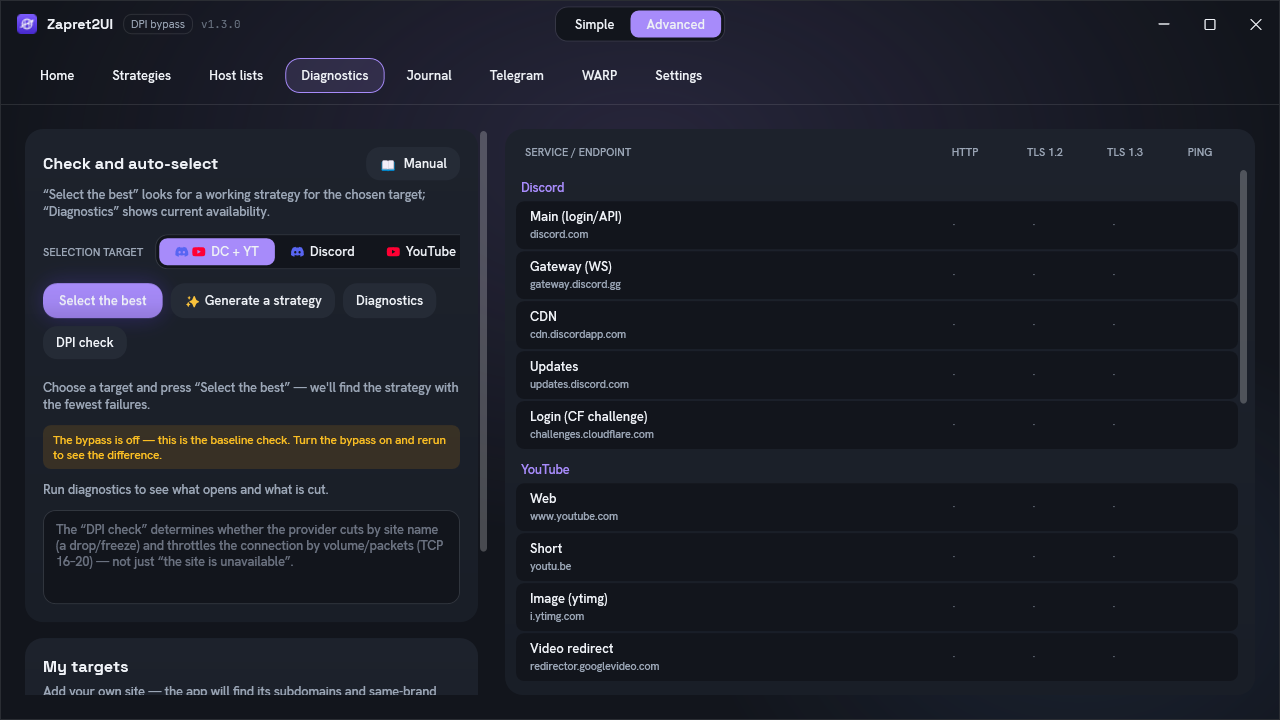

Diagnostics

Buttons on the left, the table on the right. Rows are grouped by service: Discord (login and API, gateway, CDN, updates, the Cloudflare check), YouTube (the site, short links, images, video), plus Google, Cloudflare and DNS. Columns: HTTP, TLS 1.2, TLS 1.3 and Ping.

How the "DPI check" works

Ordinary diagnostics answers "does it open". The DPI check answers a different question: is the provider interfering. For every sensitive host it takes two steps.

1. Connect to port 443

   If an ordinary TCP connection does not go through, this is not name-based blocking but plain unreachability: a routing problem or IP blocking. It says exactly that: "no connection".

2. Send the real site name

   If the connection went through, the server is alive. A TLS ClientHello with the real SNI is then sent, and what happens to that specific packet is observed:

   • A drop right after the ClientHello. The server had already accepted the connection, so a reset on the packet carrying the site name did not come from it but from equipment in the middle.
   • A freeze. The packet left, there is no reply, the connection hangs. The packet with the name was silently discarded.
   • The handshake completed. No signs of interference.

The check is most accurate with the bypass turned off: that shows the provider's behaviour uncovered. With the bypass on, a "clean" result only means the bypass has already done its job.

A volume limit is checked separately. Beyond name-based blocking, a provider may throttle the connection itself by packet count: the first few dozen kilobytes get through and then the stream stalls. A short handshake never hits such a limit and shows as "clean", so the program separately pulls a large download and watches whether it gets past the threshold. The idea for the method comes from hyperion-cs/dpi-checkers.

Journal

The first place to look if the bypass did not start. The reason is almost always here: a start-up error, a driver problem, antivirus interference, the engine's exit code.

The tab is split in two, so a proxy problem does not get lost among the engine's output.

Each pane has its own "Copy" and "Clear" buttons.

The --debug switch in the header turns on verbose mode for both panes at once. The engine starts recording which connections the techniques were applied to and why: without that, working out that a strategy silently did nothing is all but impossible. The proxy adds three lines per connection:

[tg-proxy] #7 DC2: opened via direct IP
[tg-proxy] #7 DC2: traffic started flowing
[tg-proxy] #7 DC2: closed after 45.2 s — Telegram closed the channel

What to look for in the output

All of it is mirrored into files in the logs\ folder, one file per session. If you are asking for help in the channel or in a GitHub issue, attach the last ten or fifteen lines: they almost always show what went wrong.

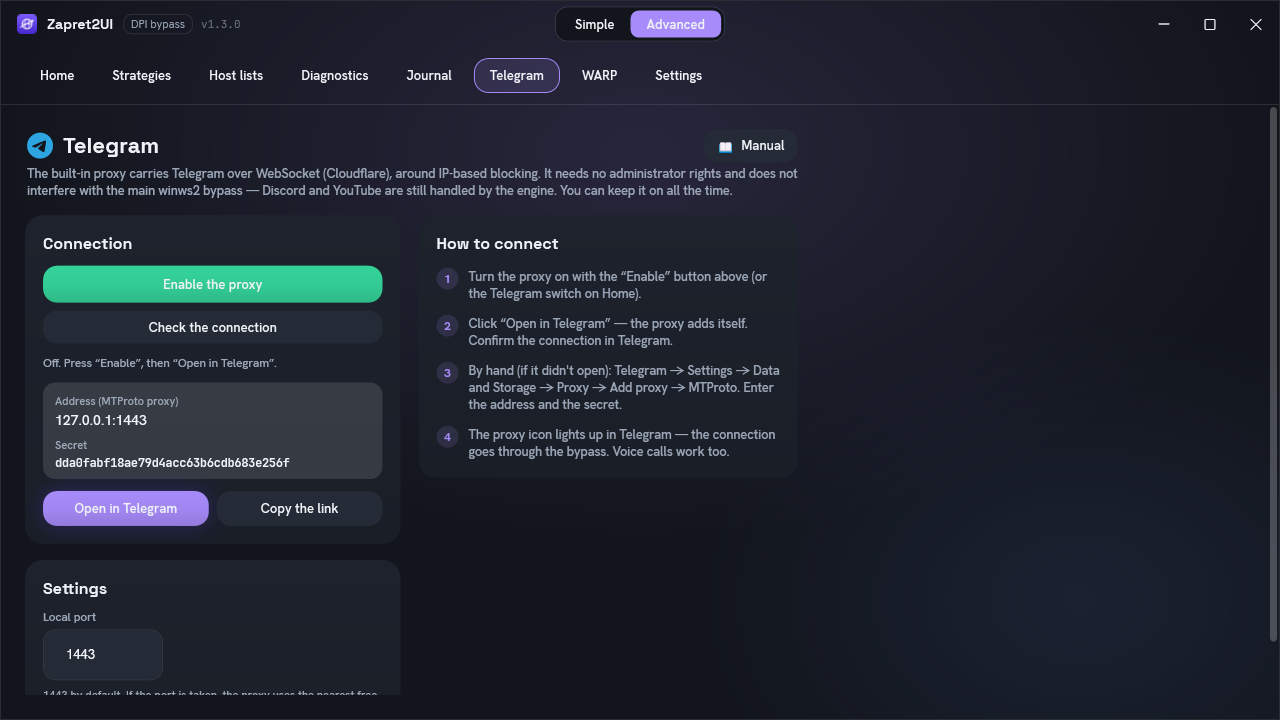

Telegram

Telegram is not blocked the way websites are: more often by IP address. DPI bypass is powerless against that, which is why the program has a separate built-in proxy.

• What it does. Raises a local MTProto proxy on 127.0.0.1:1443 and carries every connection to Telegram's data centres over WebSocket on top of TLS. When the direct path is closed, it goes through domains behind Cloudflare. That is how the connection survives address-based blocking.
• Rights. No administrator needed: this is a local listener and an outgoing TLS connection. It keeps working even when the window is minimised to the tray.
• Port and secret. Port 1443 by default; if it is taken, the nearest free one is used. A 32-character hexadecimal secret is saved so the link does not change between launches.
• How to connect it. The "Open in Telegram" button sets everything up. By hand: Settings, Data and Storage, Proxy, Add, MTProto, then fill in the address, port and secret.
• Ordinary Telegram only. The client has a test-network mode — a separate Telegram infrastructure for developers. The proxy only leads to the ordinary data centres, so it recognises such a connection and refuses it with a line in the journal. Otherwise it would silently go to an ordinary data centre and hang on "connecting" forever with no explanation.

How this differs from tg-ws-proxy

The mechanism is the same as in tg-ws-proxy, but the implementation differs. The original is a separate Python program built into a standalone executable. Here it is a native port of the protocol in C#, built straight into the application, with no second process and no Python runtime.

The dd transport (obfuscated MTProto) is implemented. The client connects over the local loopback, so FakeTLS is unnecessary and has been left out. The working path is preserved: resolution through DoH and domains behind Cloudflare, with a pool of fronts and temporary benching of the ones that fail.

The substantive difference: chat and media travel by different routes. Telegram opens its file connections separately from the chat and several at a time. The original sends both the same way, piling them into one node: the familiar picture where messages arrive instantly but photos and videos never open.

Here the route is chosen by lane. Chat takes Telegram's direct node: it opens fast, with no intermediary, and messages are small. Media prefers the Cloudflare-fronted domains, whose addresses carry bulk at full speed, and parallel transfers spread across different nodes — each lane holding its own preferred node and its own cooldown list. Each route backs the other up, and a share of the attempts is reserved for exactly that.

It works this way because the direct road leads to Telegram's own addresses — the ones more often rate-limited than blocked outright. A rate limit does not hinder a handshake, so the connection opens as if nothing were wrong: the chat flies while a download on that very same route barely crawls.

A second difference: large messages are reassembled. The channel may split a single message across several frames, and only large ones get split — that is, files, not chat. A lost continuation desynchronises the cipher stream permanently: from that point the client reads garbage and drops the connection, which looks like "media loads sometimes and sometimes not".

A third: the journal shows volume and speed. With the verbose journal on, every connection closes with a line carrying its lane, its route, the bytes in each direction and the average rate. A connection that opened, relayed a couple of kilobytes and died no longer looks healthy.

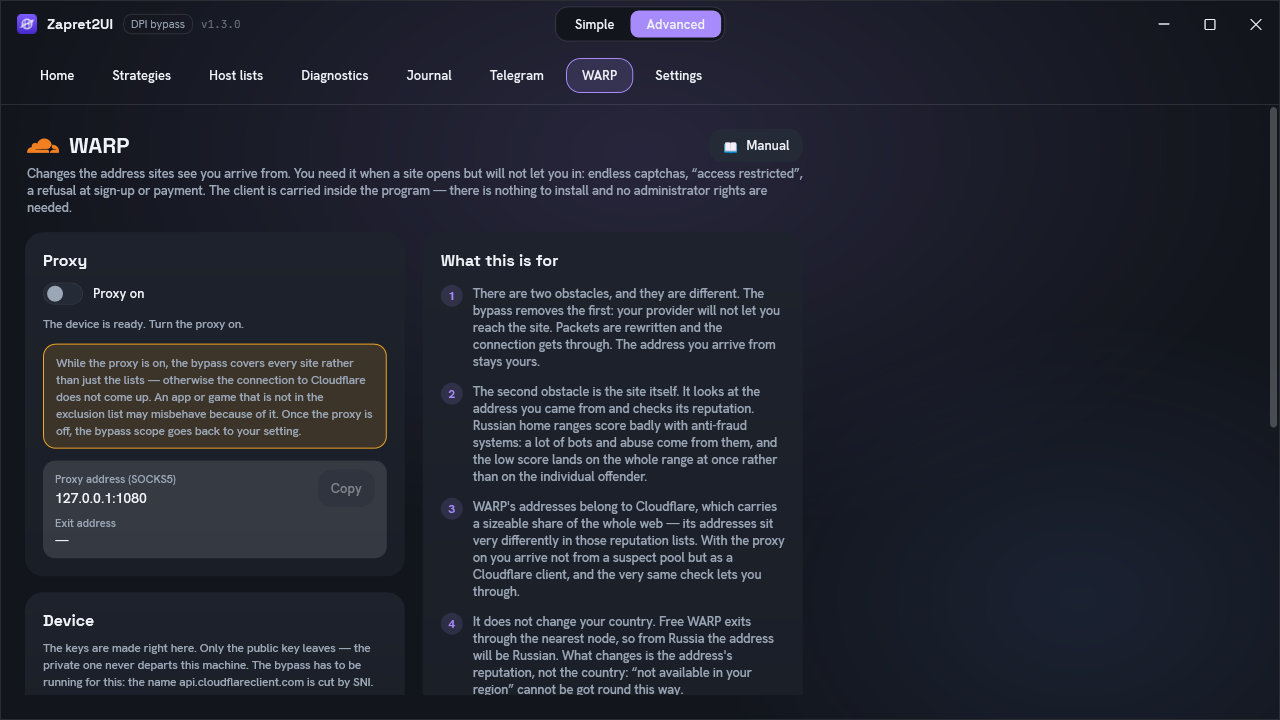

WARP

The bypass and WARP solve different problems. The bypass pushes a connection through a block — the case where a site does not open at all. WARP substitutes the address you arrive from — the case where a site opens but refuses you or your whole network.

• Nothing to install and no administrator rights needed: the client is carried inside the program and runs as an ordinary child process.
• It is a proxy, not a tunnel. No adapter, no routes, nothing changed in the system — so a failure cannot leave you without internet. Only what you point at it goes through it.
• The keys are made on your computer. Only the public key leaves; no email, password or account is involved.
• Success is not taken on trust. The program asks Cloudflare, through the proxy itself, where it sees you, and only then reports that it works.
• This will not lift geo-blocks. Free WARP exits through the nearest node: from Russia the address will be Russian and published as WARP.

What it gives you, what it does not, where to point the proxy address and what happens inside are covered on the separate «WARP and changing your address» page.

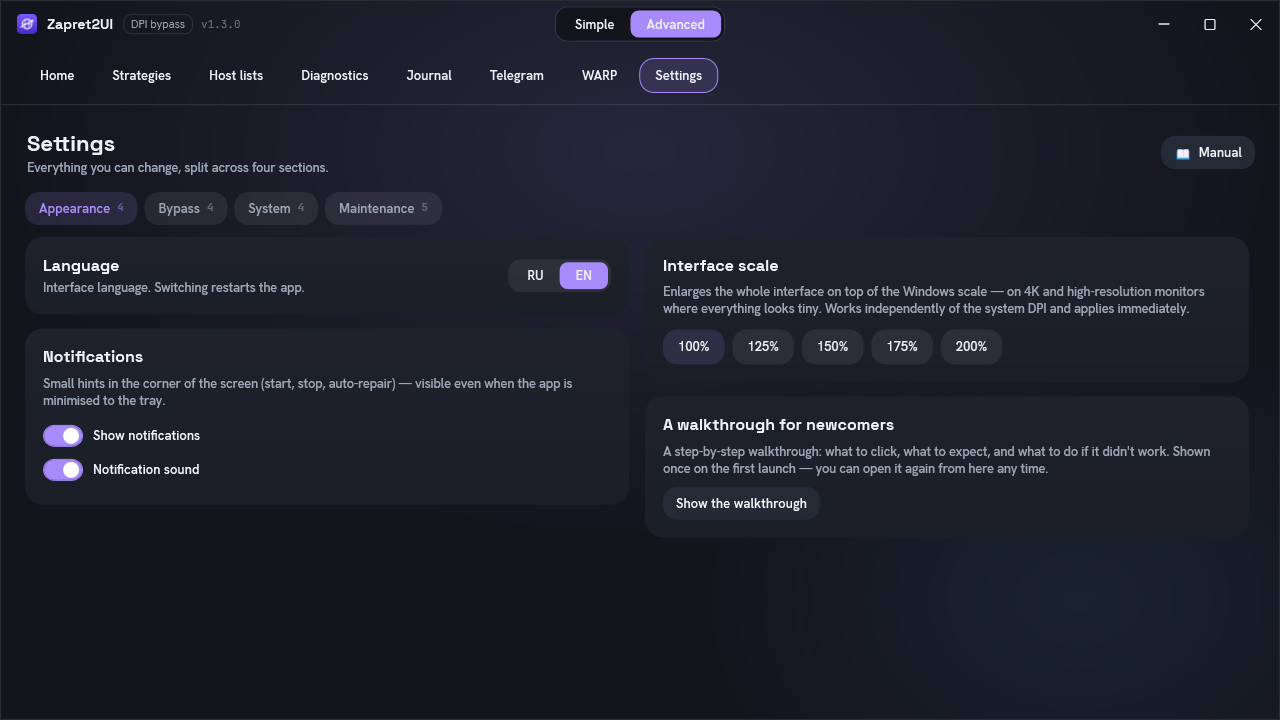

Settings

Besides the above, the file keeps two housekeeping marks for the interface: whether the support block is collapsed, and whether the first-run walkthrough has been shown. Neither is edited by hand.

A separate "Add to exclusions" button registers the program and the engine folder with Windows Defender and the firewall in one click. The antivirus remains the most common reason a bypass "does not work".

Backup, reset and logs

The Maintenance section of Settings — one-shot actions: things you run now and then rather than switch on.

Backup. The "Save to file" and "Restore from file" buttons. A single .z2bak file holds your settings, your strategies and the lists folder. The engine is not included: it weighs over a hundred megabytes and downloads itself anyway. Useful when reinstalling Windows, moving to another computer, and as insurance before a reset. Restoring replaces the current settings, strategies and lists with the contents of the file, after which the program restarts — otherwise it would write the old values, still held in memory, back over the restore.

Settings reset. Returns everything in the table above to its defaults: removes autostart along with the scheduled task, turns off auto-repair, the game filter, QUIC handling and the proxy coverage, and restores the scale and the port. A running bypass and proxy are stopped.

Log files. Every engine start writes its own logs\engine-*.log. These used to pile up without limit; now the last 20 are kept when the program starts and the rest are deleted. The "Clear logs" button removes them all at once. The startup.log and fatal.log service files are left alone — they do not grow in number and are needed for diagnosing failures.

Bypass scope, the game filter and QUIC

Three settings decide what exactly the engine touches. They affect the outcome noticeably, so it is worth understanding the difference.

Files on disk

The program is portable: it does not install into Program Files and barely touches the system. Everything lives in one folder.

%LOCALAPPDATA%\Zapret2UI\
├─ engine\                     the engine and its data
│  ├─ winws2.exe               the engine itself, needs administrator
│  ├─ mdig.exe, ip2net.exe     resolving domains into subnets for ipset
│  ├─ cygwin1.dll, WinDivert*  runtime and the network driver
│  ├─ installed_version.txt    the installed engine version
│  ├─ lua\                     technique libraries
│  ├─ files\                   blobs: ready-made TLS and QUIC client hellos
│  └─ windivert.filter\        pieces of the capture filter
├─ lists\                      host lists and ipset
│  ├─ youtube.txt, discord.txt built-in domain lists
│  ├─ exclude.txt              exclusions: banks, government services
│  ├─ ipset-discord.txt        collected subnets
│  └─ ipset-masque.txt         WARP entry points, always covered by the engine
├─ logs\                       engine output per session
├─ masque\                     the bundled WARP client
│  ├─ usque.exe               the MASQUE client
│  └─ config.json             the registered device: key, licence, token
├─ tmp\                        temporary downloads
├─ presets.json                your strategies
└─ settings.json               settings

How to remove it completely

1. Close the program

   Right-click the tray icon, "Exit". The close button only hides the window, it does not quit.

2. Remove autostart, if you enabled it

   Settings, turn "Start Zapret2UI when Windows logs in" off. Or by hand:

   schtasks /delete /tn "Zapret2UI Autostart" /f

3. Delete the file and the data folder

   Zapret2UI.exe itself and the %LOCALAPPDATA%\Zapret2UI\ folder. After that nothing is left of the program: it writes nothing to the registry or to Program Files.

sc.exe stop WinDivert
sc.exe delete WinDivert

If you added exclusions through Settings, harmless Windows Defender and firewall rules named Zapret2UI will remain. You can remove them from the Windows security settings if you like.

settings.json is written atomically, through a temporary file, so a failure during writing cannot corrupt your settings. If the file does get damaged, it is kept alongside with a .bak extension and the settings are reset to their defaults.
